EKL 84412

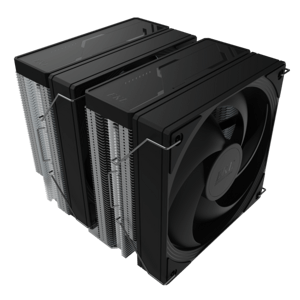

250W TDP premium twin tower for INTEL® LGA 1851/1700/1200, 115x, AM5, AM4
Optimum cooling performance for processors

Product description

The powerful twin-tower CPU cooler impresses with maximum cooling performance and a sophisticated design for demanding systems. Thanks to six powder groove combined heat pipes, heat is dissipated particularly efficiently from the processor and distributed evenly across the two heat sinks – for a consistently low temperature even under high loads.The secure screw mounting ensures a stable hold on the motherboard and perfect contact with the CPU. Two 120 mm PWM fans with a speed range of 500–1800 RPM guarantee an optimal balance between cooling performance and quiet operation. The PWM function automatically adjusts the fan speed to the system temperature – quiet when idle, powerful under full load.The system is rounded off by the included high-performance thermal paste, which further optimises heat transfer between the CPU and cooler.

Main features

  • powerful twin tower design
  • 6x Powder-Groove Combined Heatpipes
  • Secure and stable screw mounting
  • Powerful and low-vibration 120 mm PWM fan
  • High-performance thermal paste

Cooler properties

Retail article number8440000012
EAN Retail4250280354973
Power loss250W TDP
MaterialAluminium + copper
Weight1190 g
Packaging unit6 cooler / outer box
suitable forINTEL® LGA 1851/1700/1200, 115x, AM5, AM4

Fan properties

Width120 mm
Length120 mm
Height25 mm
Speed min.500 U/min
Speed max.1800 U/min
WarehouseHydraulic bearing
Operating voltage12 VDC
Volume flow93.78 m³/h
Noise level min.8 dB(A)
Noise level max.24.8 dB(A)
Service life L1020000 h by 40 °C

Dimensions

84400000012 Overall Dimension
